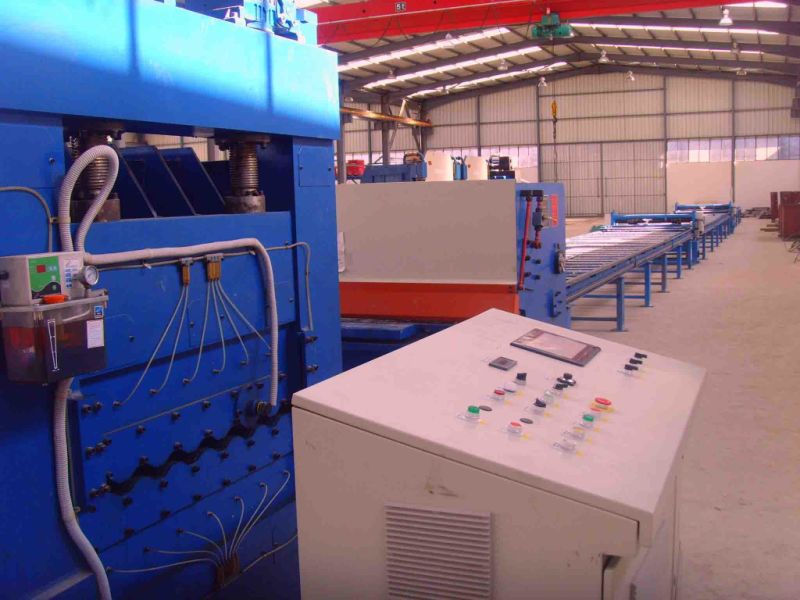

China Cut-to-Length Decoiler for Steel Light Pole (CTLA6X1600)
Basic Info
Model NO.: CTLA6x1600 HS Code: 8462219000Product Description
Cut to length line for light polemodel: CTLA6x16Fully automatic type,length CNC controlled, taper slitting with automation, Taper plate unloading and stacking automatic system .
WITH 2 BLADES TYPE EDGE SLITTING UNIT, AND TAPER SLITTING UNIT.
Application:
It is for light pole material uncoiling, leveling, cutting, scrape edge slitting and taper slitting process, to get>Technical Parameter1.Thickness of material:2mm-6.0mm for Q235A hot rolled mild steel 2~6mm, Q2352. Width of material:800-1600mm
3. Weight of steel coil:Max 15 tons 15ton(can be customize)
4. Inner diameter of steel coil:Φ500mm-Φ750mm
5. Leveling speed:5- 15m/min
6. Number of leveling rollers: 13
7. Leveling rollers diameter : 130mm
8. Length range for scale: 2000~12000mm according requirements.
10. Tolerance of cutting length :?5mm (base>11. Main leveling motor power: 37kw ,
12 double edge and taper Slitting speed 15 m/min.
13.Power of the main motor for slitting 5.5kw
14.Dolly moving speed 12m/min. ,adjustable
14.Slitting blade material : H13
15 Slitting blade diameter 280mm
16 taper slitting Pinching roll diameter:280mm
17. Max. inner Width of double slitting unit 1600mm
18. Max. inner Width of taper slitting unit 2400mm
19. width area for machine:about 7000mm
Detail of the device
1. Steel coil loading dolly car
2. Hydraulic double-head umbrella type decoiler
3. Hydraulic pressing and guiding, hydraulic shovel-head device, pinching device
4. Middle rolling way worktable
5. Guiding device
7. Rotating type Cutting machine
8. Pole length supporting table dolly ,with Automation device
9. Plate rising device
10.Double edge slitting unit
11.Pole length supporting table dolly ,with Automation device
12. Plate rising device
13. Taper slitting unit
14. Ball type support table for finished taper plate
15. Taper plate unloading and stacking automatic system
16. Electrical system
17 Hydraulic system
18. Pneumatic system
