China 6 Tier Precise Leveler Machine Leveling Straightening Machine Leveller Straightener/Cut to Length Line/Slitting Line

Basic Info

Model NO.: JPC Line Speed: 0~40 M/Min Controller: CNC Applicable Material: Steel, Aluminum, Copper, etc DC Controller: Eurotherm 590c Trademark: Oriental Machinery Transport Package: Pallets Specification: 1-100t Origin: China HS Code: 8462219000

Product Description

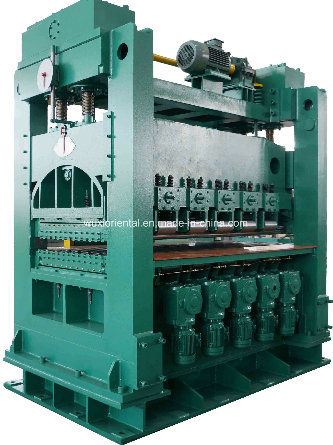

6 Tier Precise Leveler Machine Leveling straightening machine


Leveling type is sextuple structure of leveling roller, complete support roller and multi-group backing roller.

Material of leveling roller, support roller: selection of GCr15,60CrMov, 9Cr2Mo.
Final technology of leveling roller and support roller: fine grinding, hard chrome plating, finishing polish.
Reducer: model TR, ZY hardened gear reducer for choosing.
Universal joint: self-made material is structural alloy steel.The structure of heat treatment technology distribution box, adjustment and lubricating mode is same as quadruple type leveling machine.
Features: leveling roller under stress with uniform distribution, strong structural rigidity, and small deformation;
high leveling precision.Leveling plate surface is good quality; drive smoothly, low noise.
Application: apply to leveling with high precision requirement, which is the necessary equipment of aluminum leveling plate.


JPC21-2JPC21-3JPC17-6JPC15-10Steel sheet
thickness(mm)0.3-2.00.5-3.01.5-6.02.0-10Steel sheet
width(mm)1000-15501000-18501000-18501000-2500Leveling roller
diameter(mm)486580110Leveling roller
qty(pcs)19171513Support roller
qty(pair)3-53-73-73-7Main power
(kW)22-4530-11045-13255-160



Company introduction:
Wuxi Oriental Machinery is srcid= ' 239386795 ' src= ' /upLoad/et29846302134585.jpg ' width= ' 692px ' height= ' 309px ' />
