China Carbon Steel Pipe Welding Machine, Welded Steel Pipe Machine
-
If you have any enquiry about quotation or cooperation, please feel free to use the following enquiry form. Our sales representative will contact you within 24 hours. Thank you for your interest in our products.
Basic Info
Basic Info Model NO.: Cust
Product Description
China Carbon Steel Pipe Welding Machine, Welded Steel Pipe Machine
Basic Info
Model NO.: Customized Material: Metal Coil Power: 22kw Trademark: HAOSHUO Transport Package: Sea Shipping by Container Specification: customized Origin: Wuxi, China HS Code: 84552290Product Description
carbon steel pipe welding machine,welded steel pipe machine
Product description

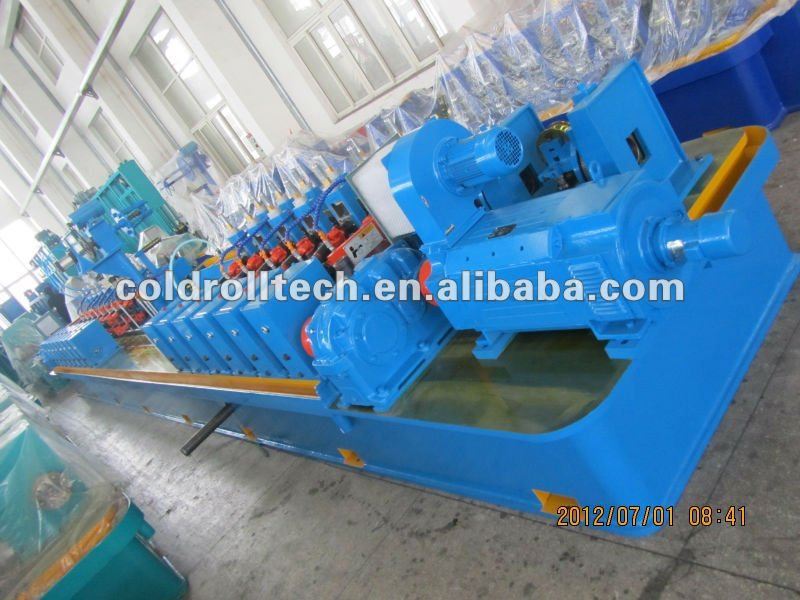

This weilded pipe making machine is the main equipment for producing straight seam welding tubes in many departments, such as metallurgy, machinery, light industry, and building materials, etc. This welding tube mill can roll certain specification long steel belt into tube barrels, and then weld those tube barrels into tubes. And this machine can be used to manufacture profiled pipes as well as round pipes.
Description
ZG12
tube mill line
ZG16
tube mill line
ZG25
tube mill line
ZG28
tube mill line
Diameter of welded tubes
Φ7-16mm
Φ8-25mm
Φ8-30mm
Φ10-38mm
Wall thickness of welded tubes
0.2-0.5mm
0.3-1.0mm
0.4-1.2mm
0.6-1.5mm
Speed of tube welding
30-100M/min
30-90M/min
30-90M/min
30-80M/min
Power of major motor
15KW
22KW
30KW
45KW
Power of high frequency welder
60KW
60KW
100KW
100KW
Description
ZG115 tube mill line
ZG165 tube mill line
ZG219 tube mill line
Diameter of welded tubes
Φ40-115mm
Φ76-165mm
Φ114-219mm
Wall thickness of welded tubes
1.5-5.0mm
2.0-6.0mm
3.0-8.0mm
Speed of tube welding
15-60M/min
15-50M/min
15-40M/min
Power of major motor
132KW?
185KW?
250KW?
Power of high frequency welder
400KW
600KW
800KW
Main components
Decoiler -------------------------------------------------- 1 Set
Buffer pit---------------------------------------------------1 Set
Hydraulic shear----------------------------------------- 1 Set
Roll former-------------------------------------------------1 Set
Flying saw cutter-----------------------------------------1 Set
Drop down-------------------------------------------------1 Set
Solid-state high frequency welding-----------------1 Set
Work flow
Uncoiler→Shearing and butt-welder→Vertical-type accumulator→Forming,welding,sizing machine→Computer cutting saw→Run-out table
Our service
One stop service for customized machine
Overseas installation & operating training
One year warranty of the whole machine
Life-long technical support
